Silvan Turbomiser Airboom Sprayer

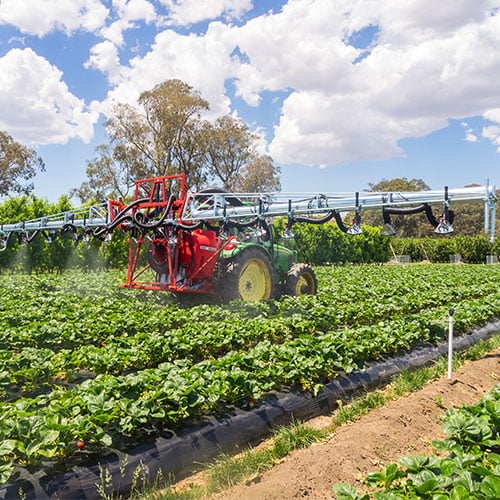

Linkage turbomiser Airboom sprayer with 140L/min centrifugal pump, 550mm fan, 7m or 12m hydraulic fold Airboom and 15 or 18 fishtail air shear spray outlets. Ideal for row crops like strawberries and vegetables. Note: Infield images are shown feature 12m Airboom.
Product Code: GTMP55N07
specifications
Market: | Horticulture |
|---|---|
Tank Size (L): | 600 |
Connection Type: | Linkage |
Min PTO HP: | 70 |
Pump Size (L/min): | 140 |
Height / Width / Length (MM): | 1500 / 1700 / 5400 |
Product Weight (KG): | 400 |
Application: | Strawberries and vegetables. |
Request More Information
Find Your Nearest Dealer
Key Features
CD32 centrifugal pump 140L/min. constructed from toughened nylon. Stainless steel shaft & Viton/ceramic seal.
P55DS: 550mm dia. turbine fan, 3700 rpm. Power consumed 50 kw / 70HP.

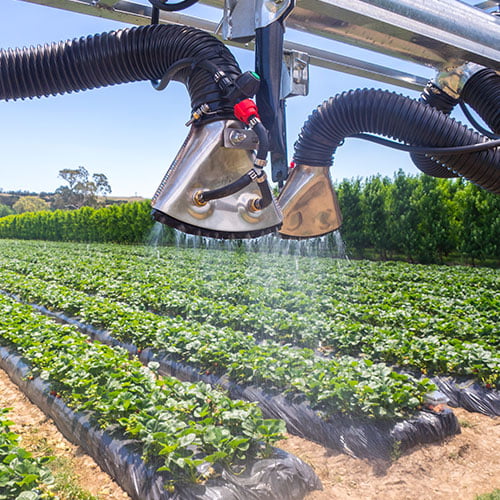

Low volume fishtail outlets, spacings and angle fully adjustable, ideal for row crops.
Electric 3 section valves with on/off, in cab control box and manual pressure adjustment.
Galvanised RHS steel frame, cat II lift pins with 2 positions.
