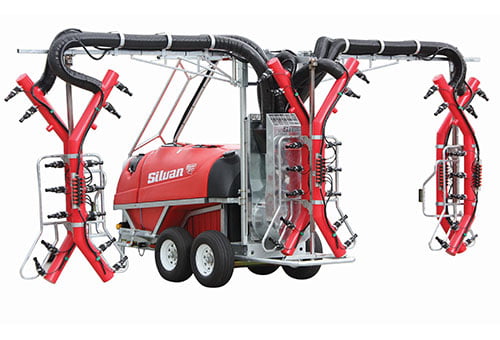

3000L TRAILED TRI WRAP – 3 ROW

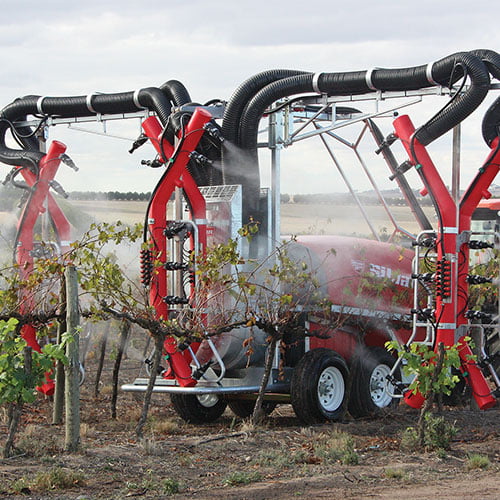

Trailed over row 3000 lire 3 row tri-wrap sprayer with 350L/min hydraulic drive stainless steel pump, sprayheads, 500mm twin turbine fan, automatic rate controller, wide angle shaft and tandem suspension axle. Ideal for vineyards.

Product Code: TU68NB5I3

3000L TRAILED TRI WRAP – 3 ROW

specifications

Market:

Viticulture

Tank Size (L):

3000

Connection Type:

Trailed

Min PTO HP:

75

Pump Size (L/min):

350

Height / Width / Length (MM):

3300 / 1755 / 3995

Product Weight (KG):

1500

Application:

Vineyards.

Folded Width :

2470

Request More Information

    Find Your Nearest Dealer

    Key Features

    Stainless steel hydraulic centrifugal pump, 350 L/min. Stainless steel shaft and Viton/ceramic seal.

    500mm twin impeller turbine fan. Power cons. 48 kw/64HP.

    Air shear.

    Electric section valves with Bravo 180S automatic rate controller. Large 100mm pressure gauge.

    Galvanised steel chassis, heavy duty stand and adjustable drawbar.

    Factory Options

    Quick turning hitch (D99-170)

    Hydraulic row width/height adjustment

    Bravo 180S spray rate controller with hydraulic controls (in lieu) (J99-180)

    Twin galvanised snorkel (D99-172)

    Road kit (D99-151)

    Over row work lights (D99-152)

    When ordering hydraulic drive pumps, tractor hydraulic capacity and system must be written on order. Note: Not all options will fit all models. Extra charges may apply to fitment of some options.
