1600L LINKAGE Sprayer

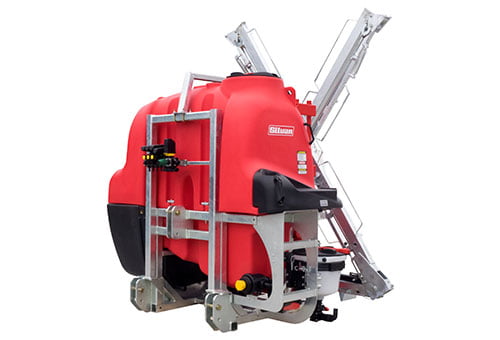

Linkage 1600 litre sprayer with 121L/min pump, no boom. Ideal for pasture spraying. Note: infield image shows 1600L linkage sprayer with optional 14m HD Devil boom.

Product Code: K16NH-125

1600L LINKAGE Sprayer

specifications

Market:

Dairy & Livestock

Tank Size (L):

1600

Connection Type:

Linkage

Pump Size (L/min):

121

Height / Width / Length (MM):

2300 / 2300 / 1480

Product Weight (KG):

650

Application:

Pasture and ag lifestyle spraying.

Request More Information

    Find Your Nearest Dealer

    Key Features

    Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with raised pump mount. BP125/20: 121L/min. capacity 2000kPa pressure.

    3 section Silvamatic electric controls with pressure compensating direct acting valves. On/off and pressure adjustment in cab.

    Galvanised steel, with adjustable cat II & cat III hitch. Vertical boom channel positions boom at optimum spray height.

    Factory Options

    10, 12, 14 or 15m HD Devil boom with hydraulic fold

    Hydraulic lift, galvanised single hydraulic system - 10, 12, 14 & 15m HD Devil booms (032-40DL)

    Hydraulic lift with airbag suspension - 10, 12, 14 and 15m HD Devil Booms (032-40DLAB)

    Parellelogram airbag suspension - 10, 12, 14 and 15m HD Devil Booms (032-40DLAB-2)

    57L Paddock marker foam marker (K99-43)

    Reel tuff 12V remote reel with Turbo 400 spray gun (K99-51)

    Bravo 180S automatic rate controller (J99-146)

    Note: Not all options will fit all models. Extra charges may apply to fitment.
