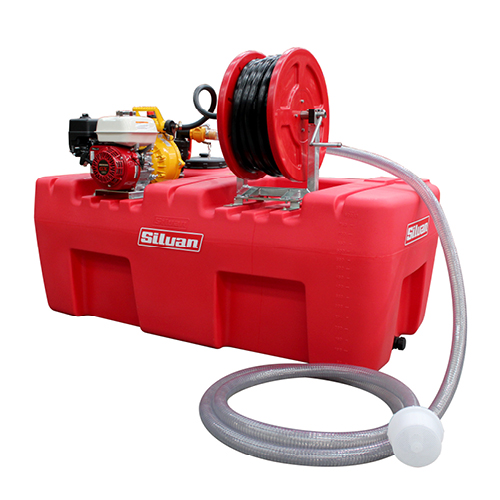

SQUATPAK 800L DAVEY GX1600 + POLY HOSEL REEL + 30M FAST FILL (SQF800D-FPR4)
SQUATPAK 800L Firefighter – DAVEY GX160 + Poly Hose Reel + Fast Fill A complete, factory-fitted and tested fire fighting package designed for power, reliability, and ease of use. Ready to go when you are, this unit features a unique baffled POLYTUFF tank that reduces liquid surge during transport, providing enhanced stability and control. Equipped with a DAVEY GX160 pump for dependable performance, plus a factory-fitted fast filler that allows operators to quickly refill the tank from a dam or water source. The heavy-duty poly hose reel with 30m hose offers exceptional reach and durability. Built tough, corrosion resistant, and ready for any emergency
Product Code: SQF800D-FPR4
specifications
Tank Size (L): | 800 |
|---|---|
Pump Size (L/MIN):: | 4015 |
Max Pressure: | 80 |
Product Weight (KG): | 90 |
Height / Width / Length (MM): | 1240 / 940 / 1800 |
Request More Information
Find Your Nearest Dealer
Key Features
800L capacity UV Stabilised Impact resistant Polytuff tank. TWIN Internal baffle to reduce surge when travelling. 255mm screw on lid and strainer. Drain Bung for easy empty and cleaning
4 stroke, 5.5 Hp GX160 Honda 163 (cc). Manual recoil rope start. Low oil protection, Oil used SAE 10W 30 (600ml). Twin stage – foam prefilter with paper final element
Capacity 3.1 Litres (Unleaded). Approximate fuel consumption @ full load 1.7L
Viton equipped internal seal, O-rings & gaskets. Fitted for improved chemical resistance. Important: Please seek specialist advice from chemical supplier if pumping chemicals. Use of aggressive chemicals may void warranty. Maximum output 415 (L/min), Max Pressure 80 (PSI). Direct coupled single centrifugal impeller. Inlet 1 x 1.5”. Outlet 2 x 1.5” (Spare). 2 x 1” used for the Hose reel & 3-way valve to deliver water back to the tank
6m suction hose and filter with camlocks for easy use and storage. 1 x 3-way valve fitted to the pump that changes the position of suction from the tank to using Dam fill kit. 1 x Ball valve fitted to deliver water from the pump to the tank
Australian-made Fire hose reel built to withstand the harshest environments. Premium quality high strength galvanized steel frame. Durable UV stabilized polyethylene drum, made from heavy-duty, rotationally moulded polyethylene that is UV-stable and built to last. 1” ID 316 stainless steel inner tube. Side buffer mechanism assists in the hose reel not unwinding when travelling. Swivel handle and inlet connector. 30m x ¾” ID fire fighter hose & adjustable nozzle. The poly adjustable nozzle allows users to control the spray pattern (from a focused jet to a wide spray) offering versatility for different fire types and applications
Horizontal 21m approx. (full stream). Vertical 11m approx. (full stream)
12 Months
