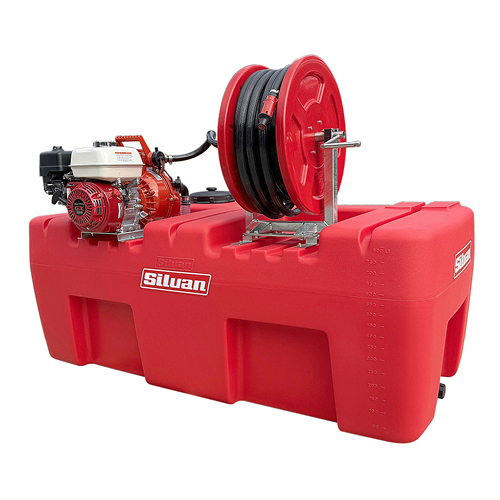

SQUATPAK 800L TWIN STAGE IMPELLER DAVEY GX200 + POLY HOSEL REEL (SQF800D-FPR3)
SQUATPAK 800L Firefighter – Twin Stage Impeller DAVEY GX200 + Poly Hose Reel A complete, factory-fitted and tested fire fighting package built for power, performance, and reliability. This ready-to-use unit features a unique twin baffled tank to reduce liquid surge during transport, ensuring enhanced stability and control. Powered by a DAVEY GX200 twin stage impeller pump, it delivers exceptional pressure and flow for demanding fire fighting and water transfer applications. The heavy-duty poly hose reel with 30m hose provides extended reach and durability. Australian made, corrosion resistant, and built tough to perform when it matters most
Product Code: SQF800D-FPR3
specifications
Tank Size (L): | 800 |
|---|---|
Pump Size (L/MIN):: | 400 |
Max Pressure: | 150 |
Product Weight (KG): | 97 |
Height / Width / Length (MM): | 1240 / 940 / 1800 |
Request More Information
Find Your Nearest Dealer
Key Features
800L capacity UV Stabilised Impact resistant Polytuff tank. TWIN Internal baffle to reduce surge when travelling. 255mm screw on lid and strainer. Drain Bung for easy empty and cleaning
4 stroke, 6.5 Hp GX200 Honda 196 (cc). Manual recoil rope start. Low oil protection, Oil used SAE 10W 30 (600ml). Twin stage – foam prefilter with paper final element
Capacity 3.1 Litres (Unleaded). Approximate fuel consumption @ full load 1.7L
TWIN stage Impeller. Viton equipped internal seal, O-rings & gaskets. Fitted for improved chemical resistance. Important: Please seek specialist advice from chemical supplier if pumping chemicals. Use of aggressive chemicals may void warranty
Maximum output 400 (L/min), Max Pressure 150 (PSI). Direct coupled twin centrifugal impeller. Inlet 1 x 1.5”. Outlet 2 x 1” & 2 x 1.5". 1 x 1” for the hose reel & 3 spare outlets
Australian-made Fire hose reel built to withstand the harshest environments. Premium quality high strength galvanized steel frame. Durable UV stabilized polyethylene drum, made from heavy-duty, rotationally moulded polyethylene that is UV-stable and built to last. 1” ID 316 stainless steel inner tube. Side buffer mechanism assists in the hose reel not unwinding when travelling. Swivel handle and inlet connector. 30m x ¾” ID fire fighter hose & adjustable nozzle. The poly adjustable nozzle allows users to control the spray pattern (from a focused jet to a wide spray) offering versatility for different fire types and applications
Horizontal 21m approx. (full stream). Vertical 11m approx. (full stream)
12 Months
