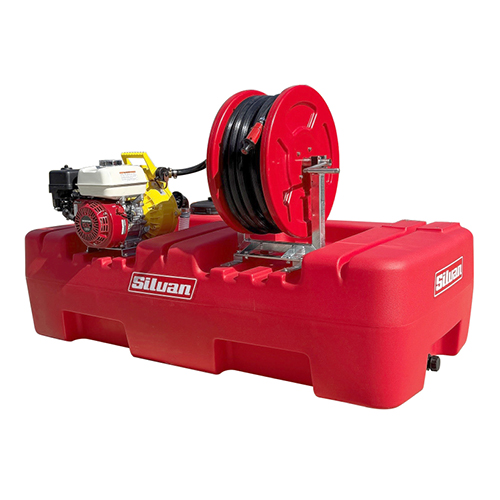

SQUATPAK 600L DAVEY GX160 + POLY HOSE REEL (SQF600D-FPR1)
SQUATPAK 600L Firefighter – DAVEY GX160 + Poly Hose Reel A complete, factory-fitted and tested fire fighting package designed for strength, stability, and reliability. Ready to use straight out of the box, this unit features a unique twin baffled POLYTUFF tank to reduce liquid surge during transport, ensuring safer and smoother operation in the field. The DAVEY GX160 pump delivers powerful and dependable performance, while the heavy-duty poly hose reel with 30m hose provides exceptional reach and flexibility. Australian made, corrosion resistant, and built to last - ideal for property protection and emergency response
Product Code: SQF600D-FPR1
specifications
Tank Size (L): | 600 |
|---|---|
Pump Size (L/MIN):: | 415 |
Max Pressure: | 80 |
Product Weight (KG): | 82 |
Height / Width / Length (MM): | 1140 / 940 / 1830 |
Request More Information
Find Your Nearest Dealer
Key Features
600L capacity UV Stabilised Impact resistant Polytuff tank. TWIN Internal baffle to reduce surge when travelling. 255mm screw on lid and strainer. Drain Bung for easy empty and cleaning.
4 stroke, 5.5 Hp GX160 Honda 163 (cc)/ Manual recoil rope start. Low oil protection, Oil used SAE 10W 30 (600ml). Twin stage – foam prefilter with paper final element
Capacity 3.1 Litres (Unleaded). Approximate fuel consumption @ full load 1.7L
Viton equipped internal seal, O-rings & gaskets. Viton fitted for improved chemical resistance. Important: Please seek specialist advice from chemical supplier if pumping chemicals. Use of aggressive chemicals may void warranty. Maximum output 415 (L/min), Max Pressure 80 (PSI). Direct coupled single centrifugal impeller. Inlet 1 x 1.5”. Outlet 2 x 1” & 2 x 1.5". 1 x 1” for the hose reel & 3 spare
Australian-made Fire hose reel built to withstand the harshest environments. Premium quality high strength galvanized steel frame. Durable UV stabilized polyethylene drum, made from heavy-duty, rotationally moulded polyethylene that is UV-stable and built to last. 1” ID 316 stainless steel inner tube. Side buffer mechanism assists in the hose reel not unwinding when travelling. Swivel handle and inlet connector. 30m x ¾” ID fire fighter hose & adjustable nozzle. The poly adjustable nozzle allows users to control the spray pattern (from a focused jet to a wide spray) offering versatility for different fire types and applications
Horizontal 21m approx. (full stream). Vertical 11m approx. (full stream)
12 months
