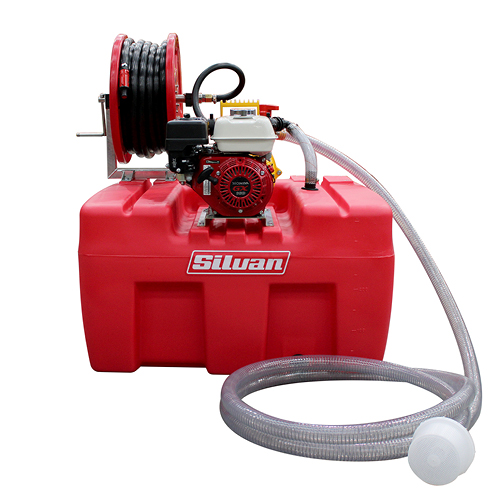

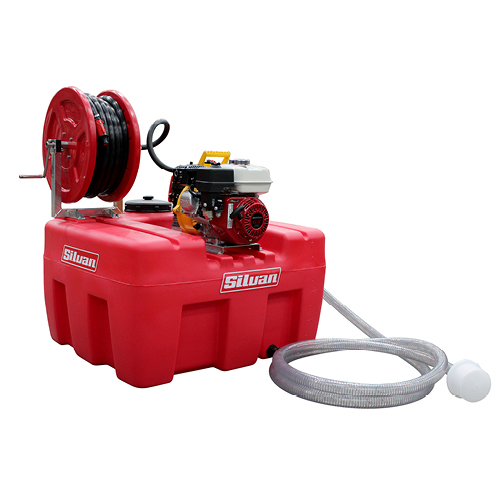

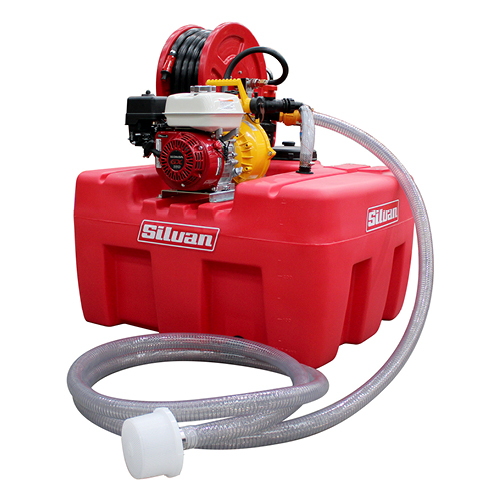

SQUATPAK 400L FIREFIGHTER DAVEY GX160 + POLY HOSE REEL + 30M HOSE + FAST FILL (SQF400D-FPR4)
SQUATPAK 400L Firefighter – DAVEY GX160 + Poly Hose Reel + 30m Hose + Fast Fill A complete, factory-fitted and tested fire fighting package that’s ready to use when you need it most. Designed for performance and ease of operation, this unit features a unique baffled POLYTUFF tank to reduce liquid surge during transport for improved stability and control. Powered by a reliable DAVEY GX160 pump, it delivers strong and consistent performance. The factory-fitted fast filler allows operators to quickly refill from a dam or water source, ensuring rapid response in fire emergencies. Includes a heavy-duty poly hose reel with 30m hose for extended reach and flexibility
Product Code: SQF400D-FPR4
specifications
Tank Size (L): | 400 |
|---|---|
Pump Size (L/MIN):: | 415 |
Max Pressure: | 80 |
Product Weight (KG): | 77 |
Height / Width / Length (MM): | 1235 / 1060 / 940 |
Request More Information
Find Your Nearest Dealer
Key Features
400L capacity UV Stabilised Impact resistant Polytuff tank. Internal baffle to reduce surge when travelling. 255mm screw on lid and strainer. Drain Bung for easy empty and cleaning.
4 stroke, 5.5 Hp GX160 Honda 163 (cc). Manual recoil rope start . Low oil protection, Oil used SAE 10W 30 (600ml). Twin stage – foam prefilter with paper final element
Capacity 3.1 Litres (Unleaded). Approximate fuel consumption @ full load 1.7L
Viton equipped internal seal, O-rings & gaskets. Viton for improved chemical resistance. Important: Please seek specialist advice from chemical supplier if pumping chemicals. Use of aggressive chemicals may void warranty. Direct coupled single centrifugal impeller. Inlet 1 x 1.5”. Outlet 2 x 1” & 2 x 1.5". 1 x 1” for the hose reel & 3 spare
Australian-made Fire hose reel built to withstand the harshest environments. Premium quality high strength galvanized steel frame which is uitable for many Fire fighter systems including the Silvan Squatpak fire fighter range. Durable UV stabilized polyethylene drum, made from heavy-duty, rotationally moulded polyethylene that is UV-stable and built to last. 1” ID 316 stainless steel inner tube. Side buffer mechanism assists in the hose reel not unwinding when travelling. Swivel handle and inlet connector. 30m x ¾” ID fire fighter hose & adjustable nozzle. The poly adjustable nozzle allows users to control the spray pattern (from a focused jet to a wide spray) offering versatility for different fire types and applications
Horizontal 21m approx. (full stream). Vertical 11m approx. (full stream)
12 Months
6m suction hose and filter with camlocks for easy use and storage. 1 x 3-way valve fitted to the pump that changes the position of suction from the tank to using Dam fill kit. 1 x Ball valve fitted to deliver water from the pump to the tank.
