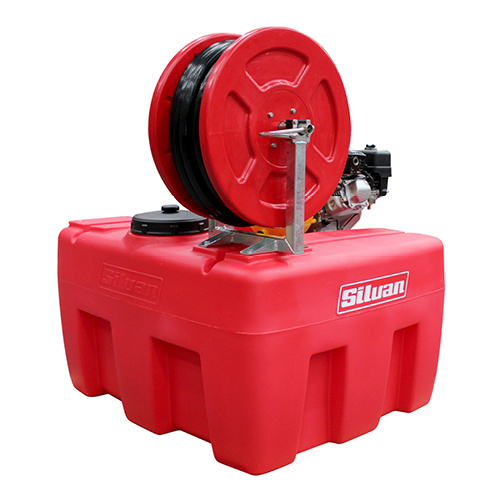

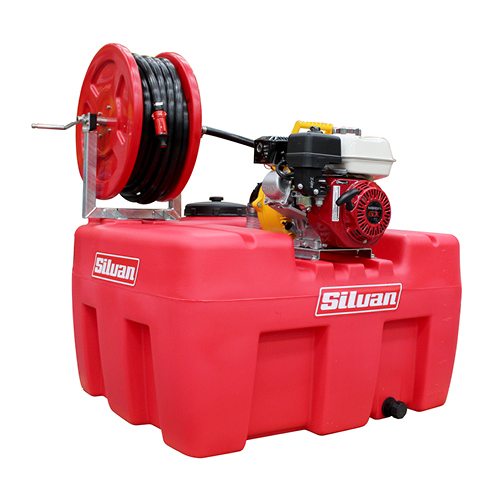

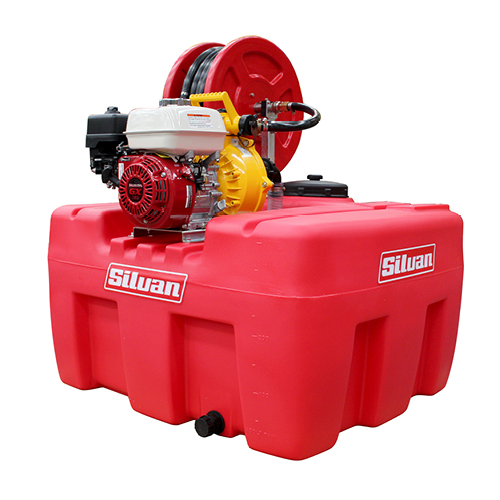

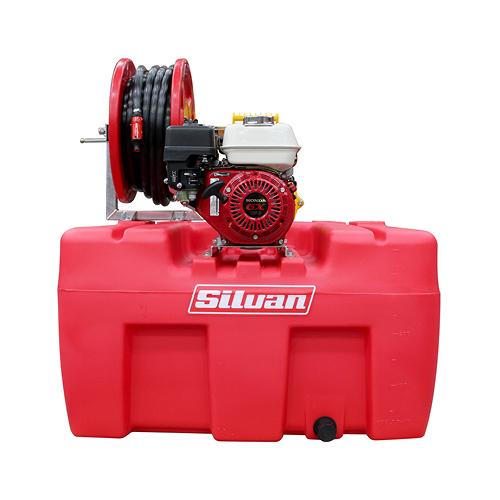

SQUATPAK 400L FIREFIGHTER DAVEY GX160 + POLY HOSE REEL (SQF400D-FPR1)
Squatpak 400L Fire Fighter with Davey GX160 + Poly Hose Reel Be prepared when it matters most with the Squatpak 400L Fire Fighter, a fully assembled and factory-tested unit designed for fast, reliable performance in fire fighting and water transfer applications. Featuring a 400L internal baffled tank, this unit reduces liquid surge during travel, ensuring safer and more stable transport. The Honda/Davey pump combination delivers exceptional output and proven reliability in demanding conditions. A heavy-duty poly hose reel with 30 m of quality hose provides maximum reach and control. Built tough with corrosion-resistant materials, this Australian-made unit is engineered to last. - Ready to use - Internal baffle tank for improved stability - High-performance Honda/Davey pump combination - 30 m heavy-duty poly hose reel - Corrosion resistant and built to last Ideal for: Fire fighting, property protection, and water transfer applications
Product Code: SQF400D-FPR1
specifications
Tank Size (L): | 400 |
|---|---|
Pump Size (L/MIN):: | 415 |
Max Pressure: | 80 |
Product Weight (KG): | 77 |
Height / Width / Length (MM): | 1235 / 1060 / 940 |
Request More Information
Find Your Nearest Dealer
Key Features
400L capacity UV Stabilised Impact resistant Polytuff tank. Internal baffle to reduce surge when travelling. 255mm screw on lid and strainer. Drain Bung for easy empty and cleaning.
4 stroke, 5.5 Hp GX160 Honda 163 (cc). Manual recoil rope start . Low oil protection, Oil used SAE 10W 30 (600ml). Twin stage – foam prefilter with paper final element
Capacity 3.1 Litres (Unleaded). Approximate fuel consumption @ full load 1.7L
Viton equipped internal seal, O-rings & gaskets. Viton for improved chemical resistance. Important: Please seek specialist advice from chemical supplier if pumping chemicals. Use of aggressive chemicals may void warranty. Direct coupled single centrifugal impeller. Inlet 1 x 1.5”. Outlet 2 x 1” & 2 x 1.5". 1 x 1” for the hose reel & 3 spare
Australian-made Fire hose reel built to withstand the harshest environments. Premium quality high strength galvanized steel frame which is uitable for many Fire fighter systems including the Silvan Squatpak fire fighter range. Durable UV stabilized polyethylene drum, made from heavy-duty, rotationally moulded polyethylene that is UV-stable and built to last. 1” ID 316 stainless steel inner tube. Side buffer mechanism assists in the hose reel not unwinding when travelling. Swivel handle and inlet connector. 30m x ¾” ID fire fighter hose & adjustable nozzle. The poly adjustable nozzle allows users to control the spray pattern (from a focused jet to a wide spray) offering versatility for different fire types and applications
Horizontal 21m approx. (full stream). Vertical 11m approx. (full stream)
12 Months
