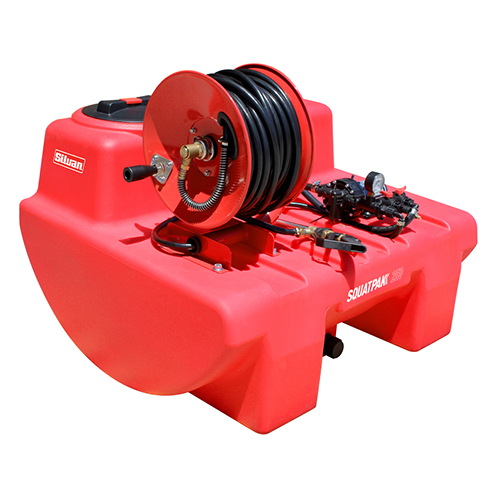

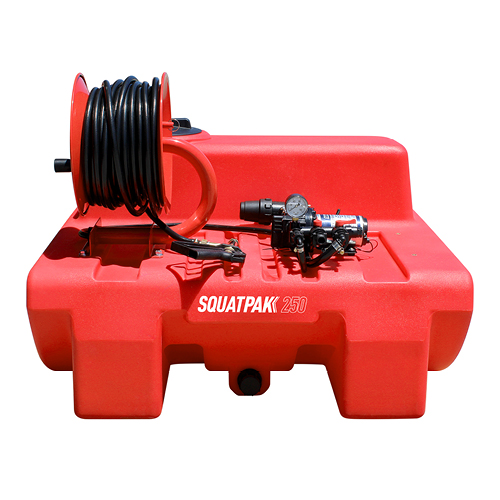

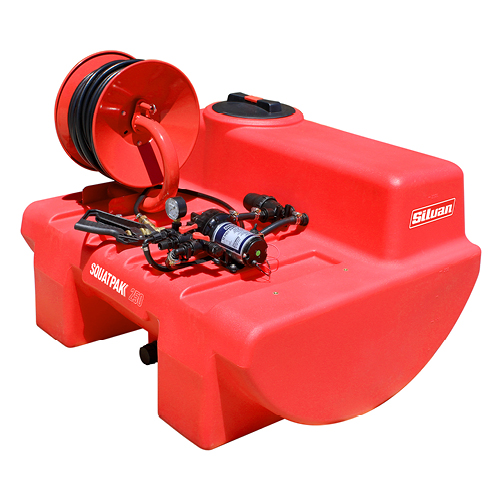

SQUATPAK 250L 14L/MIN PUMP 30M ECO HOSEREEL (TP250-S10R-1)
Designed for versatility and performance, the Silvan SQUATPAK 250L is the ideal spray unit for fence line, roadside, and spot spraying applications. Engineered for durability and efficiency, this compact yet powerful system is perfect for mounting on UTVs, buggies, or utilities. Key Features include the following. Step Tank with Sump & Twin Internal Baffles. 250L UV-stabilized tank with a built-in sump for easy draining and cleaning. Twin internal baffles minimize liquid surge, ensuring stability and maximum spraying performance when traveling. Aquatec 14L/min Pump with 3-Outlet Manifold Delivers a consistent 14L per minute for reliable spray coverage. Direct hose reel connection for seamless operation. 5D quick-fitting spare outlet for towbar booms, expanding spraying capabilities. Pressure adjustment tap with automatic bypass for continuous agitation. Professional JetPro Spray Gun & 30M Eco Hose reel. Delivers a powerful spray distance of up to 10m. Heavy-duty construction for long-lasting performance. 30m eco hose reel provides excellent reach, ideal for spot spraying or hard-to-access areas.
Product Code: TP250-S10R-1
specifications
Tank Size (L): | 250 |
|---|---|
Pump Size (L/MIN):: | 14 |
Max Pressure: | 60 |
Product Weight (KG): | 38 |
Height / Width / Length (MM): | 770 / 835 / 1010 |
Request More Information
Find Your Nearest Dealer
Key Features
250L Capacity UV Stabilised Polytuff tank with calibrated fill markings & front tank sump for draining. Internal TWIN BAFFLES to reduce liquid surge when travelling. Bottom inserts for permanent fixing to a tray or attaching optional Forklift skids. Carry points underneath the front and rear. 3 stage Filtration
Aquatec 12-volt DC electric, electric pressure sensing switch. 11 Amps max draw. 14L/Min open flow, 4 Bar/60psi maximum pressure. Chemical resistant Viton valves & Santo diaphragm. On/Off switch & 3m of battery cable with alligator clips
Connected to hose reel with pressure gauge. A spare outlet with 5D ½” Bsp male thread fitting to easily connect an optional Towbar Boom, with an on/off lever valve. Is a bypass outlet with a lever valve to adjust the pressure to the spray gun or option Towbar boom. Adjust the bypass lever to reduce pump pulsation
Powder coated metal construction. Lockable hub with locking pin. Supplied with 30m x 10mm ID ag hose
RP1-33, RP1-35, RP1-37. Jetpro spray gun, adjustable from a straight stream to a conical spray pattern with lockable trigger. Supplied with D8 nozzle
Bolts and washers included. Can be fitted North/South or East/West
