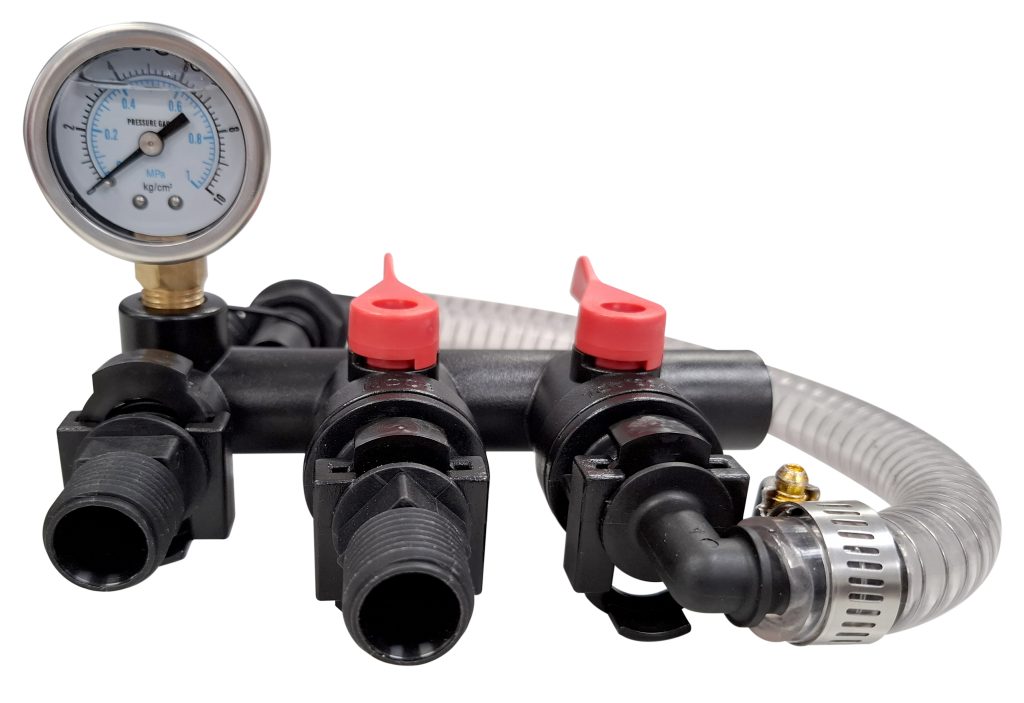

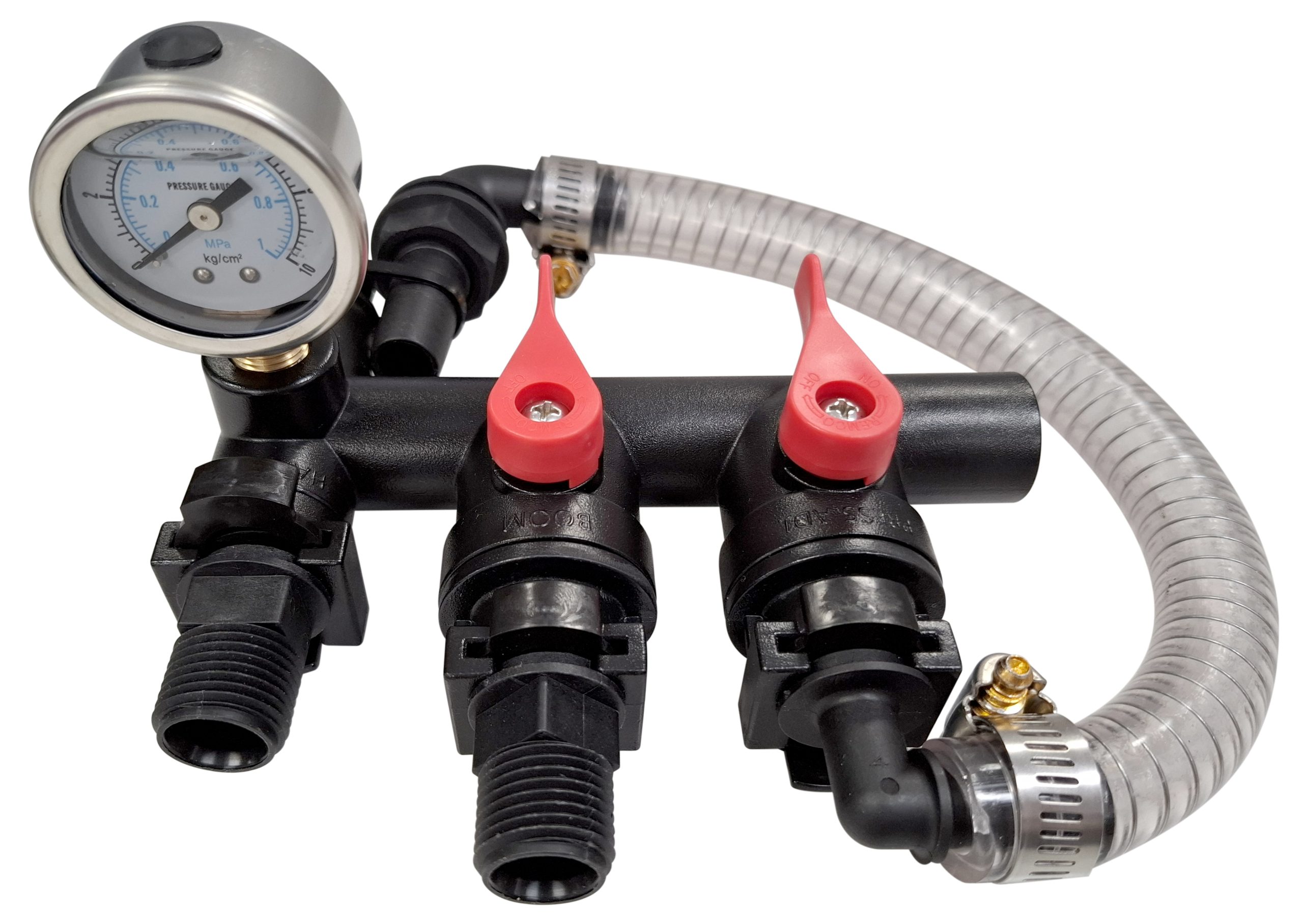

PRESSURE REGULATOR KIT – PRESS MANIFOLD & GAUGE 5D KIT SUIT DDP-550, DDP-555 (RP1-24-6)
This Pressure regulator kit is an ideal accessory that allows the operator to adjust the pressure. A prefect fit to achieve an accurate application rate whether used in a spot spraying application through a spray gun, a boomless nozzle or a spray boom. It allows the excess flow produced by the pump to be returned to the tank for agitation.
Product Code: RP1-24-6
specifications
Mounting bracket : | Supplied with mounting brackets for both DDP-550 and DDP-555 To identify which bracket to use, the larger bracket (100mm Length) suits DDP-555 and the smaller bracket (85mm Length) suits the DDP-550. Using the correct size bracket will ensure the manifold is level. |
|---|
Request More Information
Find Your Nearest Dealer
Key Features
Designed for direct connection into the deliver outlet of the pump. 1 x ½” BSP male outlet for connection to spray gun or hose reel. 1 x ½” BSP male outlet with On/Off tap ideal to connect to towbar boom
Pressure adjustment is achieved by adjusting the bypass tap
2 outlet manifold system with Quick fit 5D ½” BSP male outlets for simple connection
Bypass fitting needs to be fitted to a flat surface by drilling a 22mm hole in the top of the tank (300mm hose supplied)
Vertical glycerine filled pressure gauge
When using the pressure regulator to manage pressure from the 12V Diaphragm pump with on-demand function from operating as liquid bypasses into the tank means the pump may run constantly until switched off
12 Months
