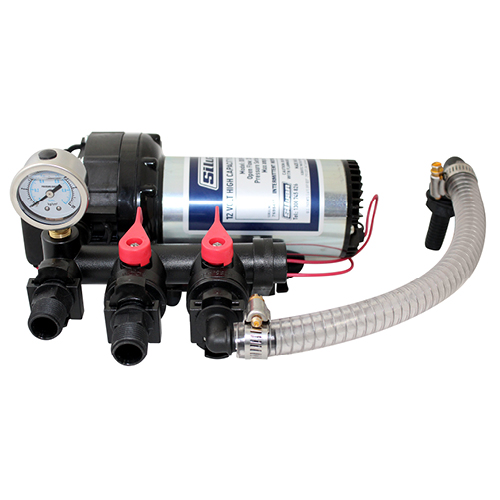

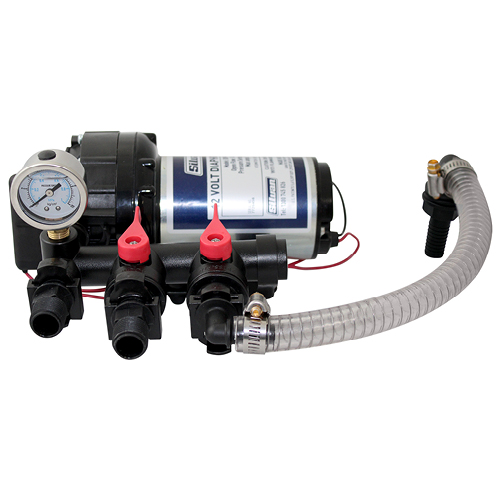

Aquatec medium duty capacity pump & Pressure regulator kit (DDP-555-1)
The Aquatec 20L/min Pump with Pressure Regulator Kit is a compact, feature-packed retrofit solution designed to suit a wide range of spray tanks (check dimensions for compatibility). Built for performance and versatility, this kit ensures consistent flow and pressure control for accurate spraying applications. The 2-outlet pressure regulator allows you to operate either a spray gun or boom, with the ability to fine-tune pressure for precise results across different tasks. Perfect for both spot spraying and boom spraying, this reliable kit delivers high flow capacity in a durable, easy-to-install package. Key Features: Aquatec 20L/min high flow pump. Compact retrofit kit – suitable for many brand spray tanks. 2-outlet pressure regulator for spray gun or boom operation. Adjustable pressure control for accurate spraying applications. Durable, reliable design for consistent performance.
Product Code: DDP-555-1
specifications
Pump Size (L/MIN):: | 14 |
|---|---|
Max Pressure: | 60psi |
Height / Width / Length (MM): | 150 / 260 / 250 |
Request More Information
Find Your Nearest Dealer
Key Features
Ideal for spot spraying, a medium size spray boom running 8 x 02 nozzles or boomless nozzle. 14 L/min open flow, max pressure 4 Bar/60psi. On/Off demand pressure switch. Recommended spray nozzle in a spray gun, size 08, to minimise pump pulsation
Designed for direct connection into the deliver outlet of the pump. Pressure adjustment is achieved by adjusting the bypass tap. 2 outlet manifold system with Quick fit 5D ½” BSP male outlets for simple connection. 1 x ½” BSP male outlet for connection to spray gun or hose reel. 1 x ½” BSP male outlet with On/Off tap ideal to connect to towbar boom. Bypass fitting needs to be fitted to a flat surface by drilling a 22mm hole in the top of the tank (300mm hose supplied). Vertical glycerine filled pressure gauge
