SUPAFLO G2 4000L sprayer with Powerhead fan

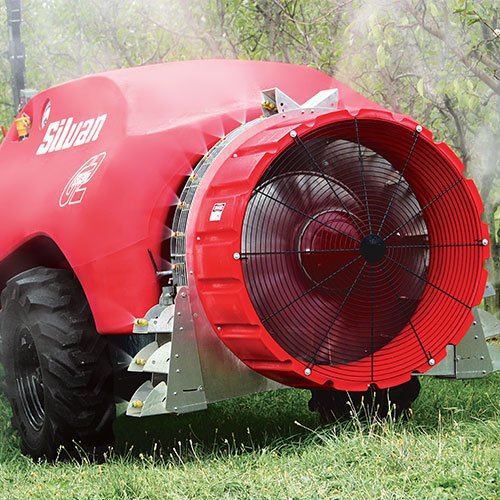

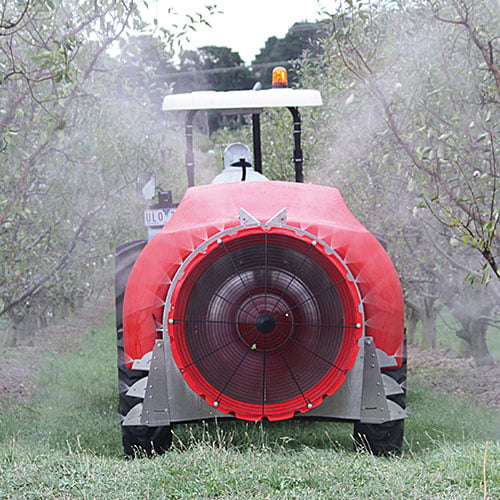

Next generation trailed air assist 4000 litre G2 sprayer with 161L/min diaphragm pump, electric controls, a Glideflex axle upgrade, wide angle shaft, flush tank, chemical induction hopper and Powerhead conveyor with 920mm fan. Ideal for orchards with trees up to 5 metres high.

Product Code: AB43PE2G

SUPAFLO G2 4000L sprayer with Powerhead fan




Tank Size (L):


Connection Type:




Pump Size (L/min):


Height / Width / Length (MM):

2020 / 1880 / 5550

Product Weight (KG):




Request More Information

    Find Your Nearest Dealer

    Key Features

    Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast aluminium body with brass heads and manifolds. IDS1701:161L/min. capacity, 5000kPa pressure.

    920mm axial flow type, 10 bladed fan with curved nylon reinforced blades, centrifugal clutch for soft engagement/disengagement and protective mesh cover.

    24 flip-over nozzle bodies for dilute/concentrate spraying with on/off. 12 Ceramic hollow cone nozzles per side and 12 ceramic jets with stainless steel swirl plates per side. (16 per side with the Radak conveyor).

    40 Bar electric section valves with master valve, electric pressure regulator and in cab controls.

    Galvanised steel, heavy duty stand & adjustable drawbar.

    Factory Options

    Hydraulic kit for Radak Conveyor (top wings) (D99-155B)

    SCRAM Jet (to suit Radak conveyor) (D99-180)

    AVO Jet (to suit Radak conveyor) (D99-187)

    Leaf guard (to suit Powerhead & Radak) (D99-176)

    Twin nozzles (includes extra nozzles) (D99-182)

    Bravo 180S automatic rate controller (D99-143)

    Tandem suspension axle with 11.5/80 - 15.3 tyres (D99-78)

    BKT flotation tyres - 558-400/55 - 22.5 (in lieu of singles) (D99-79)

    IDS2001 pump,182L/min. capacity, 5000kPa pressure (D99-148)

    IDS2600 pump,249L/min. capacity, 5000kPa pressure (D99-149)

    Note: Not all options will fit all models. Extra charges may apply to fitment of some options.
