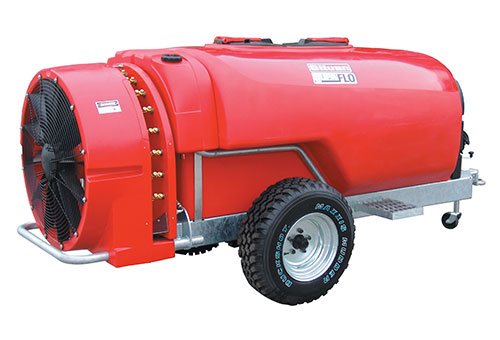

Trailed Supaflo 2000L Sprayer

Trailed air assist Supaflo 2000 litre sprayer with 161L/min diaphragm pump, electric controls, a Glideflex axle upgrade, wide angle shaft and a 900mm fan. Ideal for vineyards and orchards.

Product Code: DAB23AF8G

Trailed Supaflo 2000L Sprayer





Tank Size (L):


Connection Type:




Pump Size (L/min):


Height / Width / Length (MM):

1530 / 1540 / 3750

Product Weight (KG):



Vineyards and Orchards

Request More Information

    Find Your Nearest Dealer

    Key Features

    Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with brass heads and manifold. IDS1701:161L/min. capacity, 5000kPa pressure.

    900mm axial flow type, 10 bladed fan with curved nylon reinforced blades, air straightening vanes and protective mesh cover. Powerhead & Radak fitted with 920mm axial flow type, 10 bladed fan, centrifugal clutch and protective mesh cover.

    Flip-over type for dilute/concentrate spraying. Ceramic jets, stainless steel swirl-plates. 16 double sided nozzles (8 per side) twist on/off. The Powerhead has 24 double sided nozzles (12 per side) and the Radak has 32 (16 per side).

    40 bar electric section valves, master valve, electric pressure regulator and in cab controls.

    Galvanised steel with jockey wheel & adjustable drawbar.

    Factory Options

    Powerhead Conveyor (in lieu of standard fan cowling) (D99-184)

    Radak Conveyor - Manual adjustment of top and bottom wings (In lieu of standard fan cowling) (D99-135)

    Hydraulic kit for Radak Conveyor (top wings) (D99-155B)

    SCRAM Jet (to suit Radak Conveyor) (D99-180)

    One sided conveyor (D99-41)

    Leaf guard (to suit Powerhead & Radak) (D99-175)

    Twin nozzle (includes extra nozzles) (D99-182)

    Two-sided poly vineyard conveyor (D99-111)

    Bravo 180S automatic rate controller (D99-143)

    Flotation tyres - 400/60 x 15.5” with fixed axle (in lieu of standard singles) (D99-80)

    Note: Not all options will fit all models. Extra charges may apply to fitting of some options. Fitting of Powerhead & Radak includes upgrade to 920mm fan and uprated gearbox
