800L Cane Boom LINKAGE SPRAYER

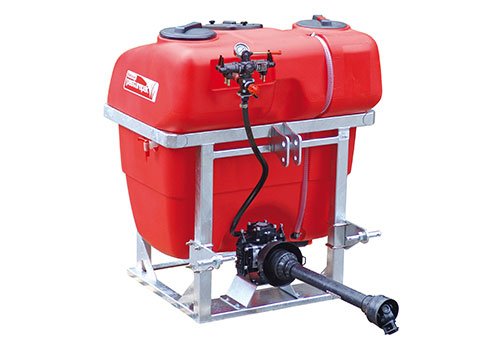

Linkage 800 litre Cane Boom sprayer with 71L/min pump, no boom. Note: infield image shows 1100L with 6 row cane boom. Product image shows 600L linkage sprayer. Additional model available K08N-125C with 121L/min (BP125/20) pump.

Product Code: K08N-75C

800L Cane Boom LINKAGE SPRAYER

specifications

Market:

Dairy & Livestock

Sugarcane

Tank Size (L):

800

Connection Type:

Linkage

Pump Size (L/min):

71

Height / Width / Length (MM):

1315 / 1395 / 1350

Product Weight (KG):

145

Application:

Sugarcane spraying.

Request More Information

    Find Your Nearest Dealer

    Key Features

    Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body. BP75/20: 71 L/min. capacity 2000kPa pressure.

    2 x twin nozzle bodies per spray head and air induction nozzles.

    4 outlet single lever control valve with pressure regulation and gauge.

    Fully galvanised steel, cat II adjustable hitch.

    Cane boom: 4 row or 6 row. Fully galvanised construction, to suit row widths from 1.5 - 1.8m with 500-1300mm shield spray head and brush skirts. Spray heads have heavy duty hinges to withstand drag, parallelogram tracking system.

    Factory Options

    4 ROW CANE BOOM (035-4N)

    6 ROW CANE BOOM (035-6N)

    Broadacre boom attachment (to suit 4 row) (035-4B)

    Broadacre boom attachment (to suit 6 row) (035-6B)

    Hydraulic lift, galvanised single hydraulic system (032-40DL)

    70L flush tank kit to flush the filter, spraylines and nozzles (K99-47)

    Electric control 3 section with in cab pressure adjustment (K99-29)

    Electric control 4 section with in cab pressure adjustment (K99-49)

    Electric control 5 section with in cab pressure adjustment (K99-50)

    Bravo 180S automatic rate controller (J99-151)

    Silmix chemical hopper (K99-21)

    Note: Not all options will fit all models. Extra charges may apply to fitment of some options.

    Additional model available K08N-125C with 121L/min (BP125/20) pump.
