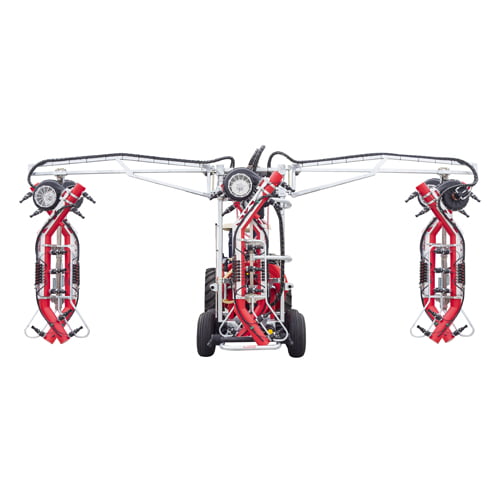

3000L 3 Row Turbo SCRAM Sprayer

3000L TURBO SCRAM TRAILED 3 ROW TRI-WRAP: Includes sprayheads 6 x 320mm fans, Hydraulic drive stainless steel pump, automatic spray rate controller, self contained hydraulic drive system, tandem suspension axle

Product Code: STU68HB5S3

3000L 3 Row Turbo SCRAM Sprayer




Tank Size (L):


Connection Type:


Pump Size (L/min):


Request More Information

    Find Your Nearest Dealer

    Key Features

    Stainless steel, hydraulic drive centrifugal pump, 350 L/min. Stainless steel shaft and Viton/ceramic seal. Driven by tractor remotes.

    320 mm turbine fan, one per air tube, 3600 rpm. Power consumed 29 kw / 38HP.

    Air shear

    Electric section valves with Bravo 180S automatic rate controller. Large 100mm pressure gauge.

    Galvanised steel chassis, linkage hitch fitted with hydraulic power pack.

    Polytuff impact resistant polyethylene construction, calibrated sight line, flip top easy open lid, 50mm camlock bottom fill and hand wash tank. (205L flush tank on 3000L)

    Three row spraying head: 42 venturi air shear adjustable nozzles with individual metering and on/off taps. Left & right arms are independent hydraulic folding with adjustable width & centre frame. Boom frame is galvanised.

    Lid strainer and large capacity suction filter.

    Tandem suspension axle with 10 x 15” tyres (3000L)

    Quality Bondioli & Pavesi driveshaft with quick release pins & safety cover.

    Minimum 65 PTO HP (2 row), 80 PTO HP (3 row)
