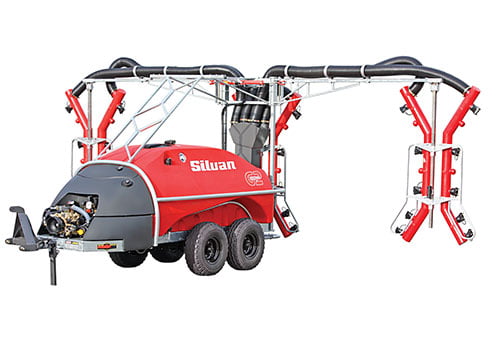

3 ROW 4000L G2E TGS

Trailed over row G2E TGS 3 row 4000 litre sprayer with 182L/min pump, 500mm twin turbine fan and electric valve controls. Ideal for vineyards.

Product Code: ETG44NM6S3

3 ROW 4000L G2E TGS

specifications

Market:

Viticulture

Tank Size (L):

4000

Connection Type:

Trailed

Min PTO HP:

75

Pump Size (L/min):

182

Height / Width / Length (MM):

3300 / 1950 / 5230

Product Weight (KG):

1820

Application:

Vineyards

Folded Width :

2800mm

Request More Information

    Find Your Nearest Dealer

    Key Features

    Silvan oil-backed diaphragm type with nitrile diaphragms with brass heads and manifolds. IDS2001: 182L/min. capacity 5000kPa pressure.

    500mm twin impeller turbine fan, power consumed 48 kw (64HP).

    Twin hollow cone ceramic nozzles per outlet with individual metering on/off non-drip taps.

    40 Bar electric section valves, master valve, electric pressure regulator and in cab controls.

    Galvanised steel chassis, adjustable drawbar & heavy duty stand.

    Factory Options

    IDS2600 pump, 249L/min capacity, 5000kPa pressure (D99-149)

    Bravo 180S automatic rate controller (D99-143)

    Vertical lift head assembly (1 extra set of tractor remotes required) (TGS-LIFT)

    Quick turning hitch (D99-170)

    Twin galvanised snorkel (D99-172)

    Hydraulic row width adjustment

    Road kit (D99-151)

    Over row work lights (D99-152)
