3 ROW 3500L TGS

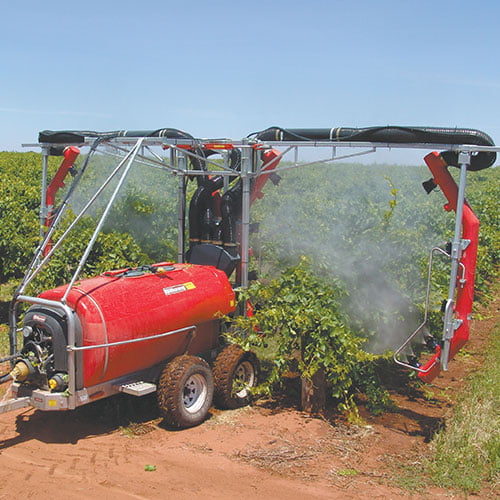

Trailed over row TGS 3 row 3500 litre sprayer with 161L/min pump, electric valve controls and 500mm twin turbine fan. Ideal for vineyards and berries. Note: infield product images are of 2 row 2000L TGS.

Product Code: DTG33NM5S3

3 ROW 3500L TGS

specifications

Market:

Horticulture

Viticulture

Tank Size (L):

3500

Connection Type:

Trailed

Min PTO HP:

75

Pump Size (L/min):

161

Height / Width / Length (MM):

3300 / 1800 / 5075

Product Weight (KG):

1020

Application:

Vineyards and Berries.

Folded Width :

2800mm

Request More Information

    Find Your Nearest Dealer

    Key Features

    Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with brass heads and manifolds. IDS1701: 161L/min. capacity 5000kPa pressure.

    500mm twin impeller turbine fan, power consumed 48 kw (64HP).

    Twin hollow cone ceramic nozzles per outlet with individual on/off non-drip taps.

    40 Bar electric section valves, master valve, electric pressure regulator and in cab controls.

    Galvanised steel chassis, adjustable drawbar & jockey wheel.

    Factory Options

    IDS2600 pump, 249L/min capacity, 5000kPa pressure (D99-149)

    Bravo 180S automatic rate controller (D99-143)

    Vertical lift head assembly (1 extra set of tractor remotes required) (TGS-LIFT)

    Quick turning hitch (D99-170)

    Twin galvanised snorkel (D99-172)

    Hydraulic row width adjustment
