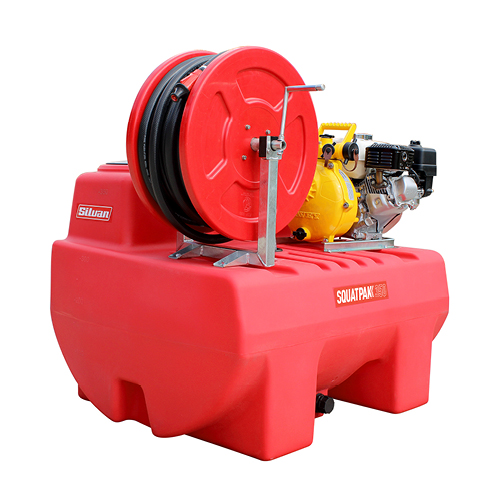

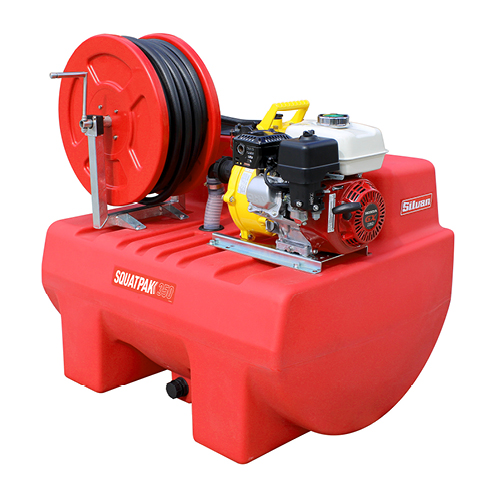

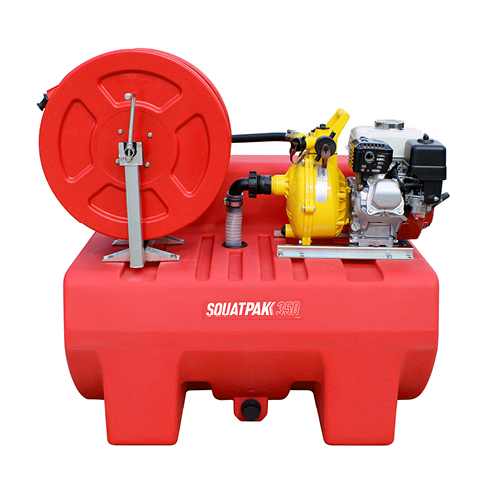

SQUATPAK 350L DAVEY GX160+ POLY HOSE REEL (SQF350D-FPR1)
Ready to perform when you need it most, this complete factory-fitted and tested fire fighter package is supplied fully assembled and ready for immediate use. Designed for dependable fire protection, it combines premium components with rugged construction to deliver reliable performance in demanding rural environments. An internal baffled tank minimises water surge while travelling, improving vehicle stability and safety across uneven terrain. Powered by the trusted Honda and Davey pumping combination, the unit provides proven reliability and consistent water delivery. A heavy-duty Australian-made poly hose reel fitted with 30 metres of hose offers excellent corrosion resistance and long-lasting durability, ensuring dependable operation year after year. Features: - Complete factory-fitted and fully tested fire fighter package - Ready to use with no assembly or setup required - Internal baffled tank reduces water surge during transport - Reliable Honda engine and Davey pump combination - Heavy-duty Australian-made poly hose reel - 30 metres of durable hose for extended reach - Corrosion-resistant construction built for long service life
Product Code: SQF350D-FPR1
specifications
Tank Size (L): |
350 |
|---|---|
Pump Size (L/MIN):: |
415 |
Max Pressure: |
80 |
Product Weight (KG): |
75 |
Height / Width / Length (MM): |
1070 / 835 / 1010 |
Request More Information
Find Your Nearest Dealer
Key Features
• 350L capacity UV Stabilised Impact resistant Polytuff tank • Internal TWIN BAFFLES to reduce surge when travelling. • 255mm screw in lid and strainer • Drain Bung for easy empty and cleaning.
• 4 stroke, 5.5 Hp GX160 Honda 163 (cc) • Manual recoil rope starts • Low oil protection, Oil used SAE 10W 30 (600ml) • Twin stage – foam prefilter with paper final element
• Capacity 3.1 Litres (Unleaded) • Approximate fuel consumption @ full load 1.7L
• Viton equipped internal seal, O-rings & gaskets. • Viton for improved chemical resistance. • Important: Please seek specialist advice from chemical supplier if pumping chemicals. • Use of aggressive chemicals may void warranty.
• Maximum output 415 (L/min), Max Pressure 80 (PSI) • Davey Single Impellor Pump • Inlet 1 x 1.5” • Outlet 2 x 1” & 2 x 1.5" • 1 x 1” for the hose reel & 3 spare
• Horizontal 21m approx. (full stream) • Vertical 11m approx. (full stream)
• Bolts and washers included • Can be fitted North/South or East/West
• Australian-made Fire hose reel built to withstand the harshest environments. • Premium quality high strength galvanized steel frame • Durable UV stabilized polyethylene drum, made from heavy-duty, rotationally molded polyethylene that is UV-stable and built to last. • 1” ID 316 stainless steel inner tube. • Side buffer mechanism assists in the hose reel not unwinding when travelling • Swivel handle and inlet connector • 30m x ¾” ID fire fighter hose & adjustable nozzle • The poly adjustable nozzle allows users to control the spray pattern—from a focused jet to a wide spray—offering versatility for different fire types and applications.
12 Months
