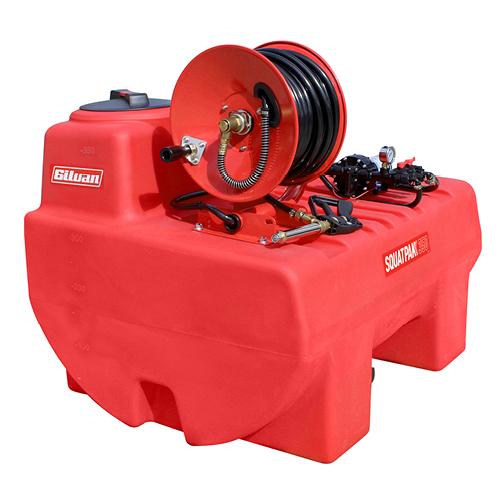

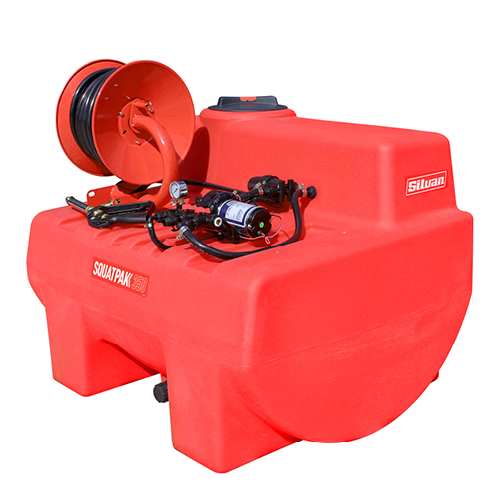

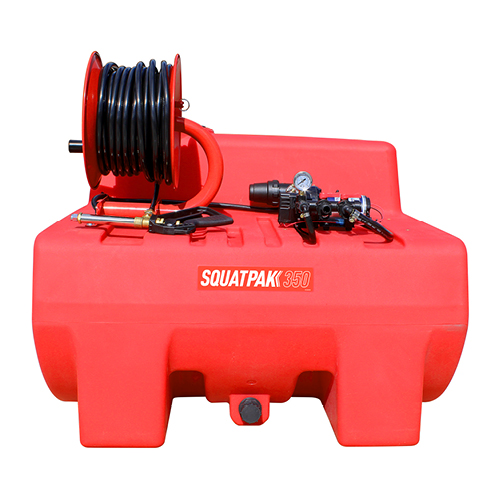

SQUATPAK 350L 14L/MIN PUMP 30M ECO HOSEREEL (TP350-S10R-1)
The SQUATPAK 350L Sprayer is a compact, versatile spraying solution designed for UTVs, buggies, utilities, and other compact work vehicles. Ideal for fence line, roadside, and spot spraying applications, it delivers reliable performance in a practical, space-efficient design. The robust PolyTuff step tank features an integrated sump and twin internal baffles, helping reduce liquid surge while travelling for improved stability and spraying consistency. The sump also assists with complete tank drainage and easier cleaning after use. Powered by a high-performance Aquatec 14L/min pump, the system is equipped with a 3-outlet manifold that provides direct connection to the hose reel, a convenient 5D quick-connect outlet for tow-behind booms, and a pressure adjustment tap with automatic bypass agitation to keep spray solutions thoroughly mixed. The sprayer is fitted with a professional-grade JetPro spray gun and a durable 30-metre ECO hose reel, providing a spray distance of up to 10 metres for efficient coverage. Whether tackling weed control, fence lines, roadside maintenance, or general property spraying, the SQUATPAK 350L offers dependable performance and ease of operation. Compact, efficient, and built for demanding conditions, the SQUATPAK 350L is the ideal choice for professional and rural spraying applications
Product Code: TP350-S10R-1
specifications
Tank Size (L): |
350 |
|---|---|
Pump Size (L/MIN):: |
14 |
Max Pressure: |
60 |
Product Weight (KG): |
41 |
Height / Width / Length (MM): |
920 / 835 / 1009 |
Request More Information
Find Your Nearest Dealer
Key Features
• 350L Capacity UV Stabilised Polytuff tank with calibrated fill markings & front tank sump for draining. • Internal TWIN BAFFLES to reduce liquid surge when travelling. • Bottom inserts for permanent fixing to a tray or attaching optional Forklift skids. Code 430-115,4 x M10. • Carry points underneath the front and rear • 3 stage Filtration.
• Aquatec 12-volt DC electric, electric pressure sensing switch. 11 Amps max draw. • 14L/Min open flow, 4 Bar/60psi maximum pressure. • Chemical resistant Viton valves & Santo diaphragm. • On/Off switch & 3m of battery cable with alligator clips
1. Connected to hose reel with pressure gauge 2. A spare outlet with 5D ½” Bsp male thread fitting to easily connect an optional Towbar Boom, with an on/off lever valve. 3. Is a bypass outlet with a lever valve to adjust the pressure to the spray gun or option Towbar boom. 4. Adjust the bypass lever to reduce pump pulsation.
• Powder coated metal construction. • Lockable hub with locking pin. • Supplied with 30m x 10mm ID ag hose.
RP1-33 / RP1-35 / RP1-36
• Jetpro spray gun, adjustable from a straight stream to a conical spray pattern with lockable trigger. • Supplied with D8 nozzle
• Bolts and washers included • Can be fitted North/South or East/West
12 Months
