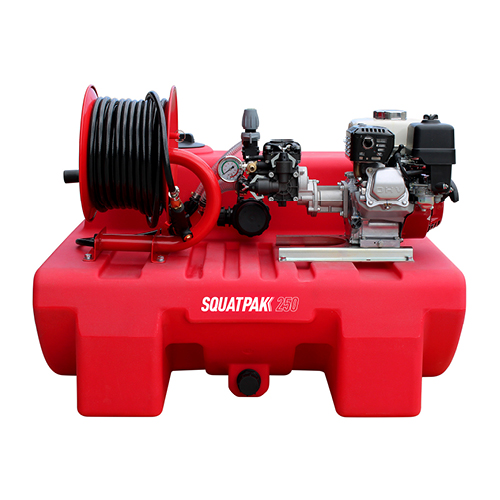

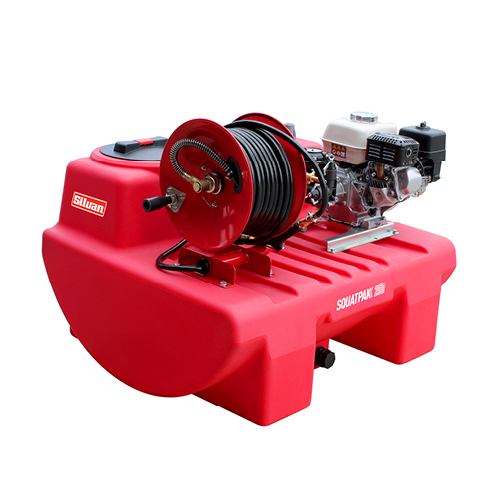

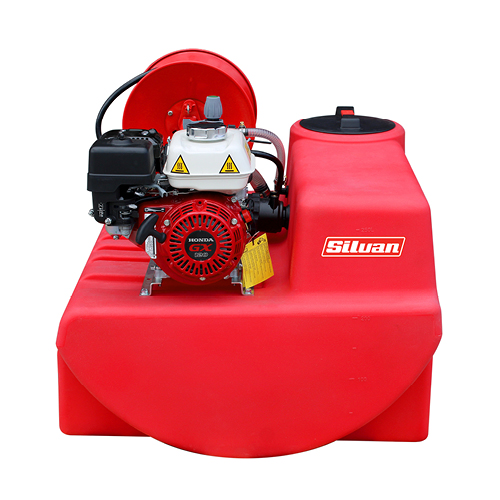

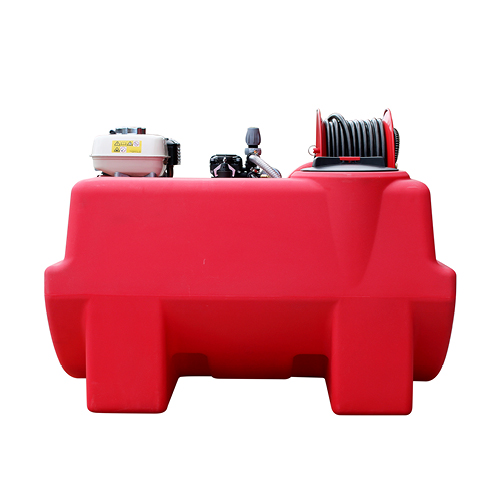

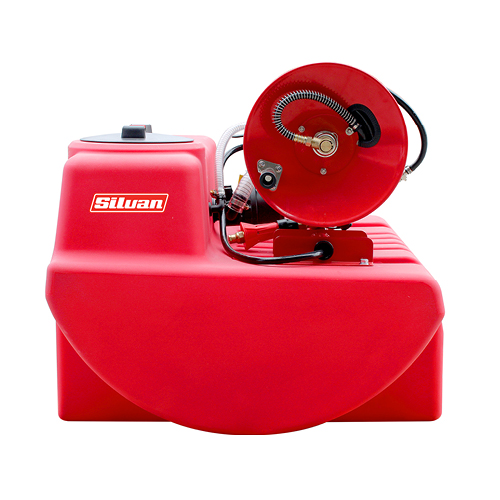

SQUATPAK 250L MC20/20 30M ECO HOSEREEL (TP250-34-1)
Designed for maximum efficiency and versatility, the SquatPak 250L MC20/20 Sprayer is the perfect solution for spot spraying, fence lines, and roadside applications. Its compact design makes it ideal for side-by-sides, buggies, and utility vehicles, offering powerful performance with a spray reach of up to 15m. Key Features include the following. Polytuff Step Tank with Sump & Twin Internal Baffles ensures efficient draining and cleaning while reducing liquid surge for stability during transport. Compact & Powerful Sprayer delivers high flow and pressure, capable of running an 8-nozzle boom (04 nozzles @ 3 bar) while maintaining a 15m spray reach. A 30M Eco Hose Reel & Atomiser Spray Gun provides extended reach and precise spraying, perfect for spot spraying or fence line and roadside applications
Product Code: TP250-34-1
specifications
Tank Size (L): | 250 |
|---|---|
Pump Size (L/MIN):: | 18.5 |
Max Pressure: | 290 |
Product Weight (KG): | 46 |
Height / Width / Length (MM): | 770 / 835 / 1010 |
Request More Information
Find Your Nearest Dealer
Key Features
250L Capacity UV Stabilised Polytuff tank with calibrated fill markings & front tank sump. Internal TWIN BAFFLES to reduce liquid surge when travelling. Bottom inserts for permanent fixing to a tray or attaching optional Forklift skids
Honda GX120 (3.5hp) Driven with low level oil alert with direct drive 6:1 reduction gearbox
Comet MC20/20 18.5L/min open flow capacity & 20Bar/290psi maximum pressure. Silvan self-priming positive displacement oil-backed diaphragm with nitrile diaphragms and corrosion resistant, cast anodised aluminium body
Pressure regulator with pressure adjustment and automatic bypass, gauge and 2 outlets, 1 for the hose reel & 1 for an optional boom
3 stage Filtration, to protect the pump & minimize nozzle blockage. Basket strainer under the filling lid & 2 suction filters prior to the pump
Powder coated metal construction. Lockable hub with locking pin. Supplied with 30m x 10mm ID ag hose
Bolts and washers included. Can be fitted North/South or East/West
Atomiser spray gun, adjustable from a straight to a conical spray & Atomiser fine mist. Supplied with 1.5- & 2.0-mm ceramic nozzle
RP1-33, RP1-35, RP1-36. # Note: The MC20/20 pump has sufficient flow to increase the size of nozzles in the Towbar booms, standard fitment is Yellow 02, Towbar booms (excluding the RP1-36) can use Red 04 to increase the overall flow rate
12 months
