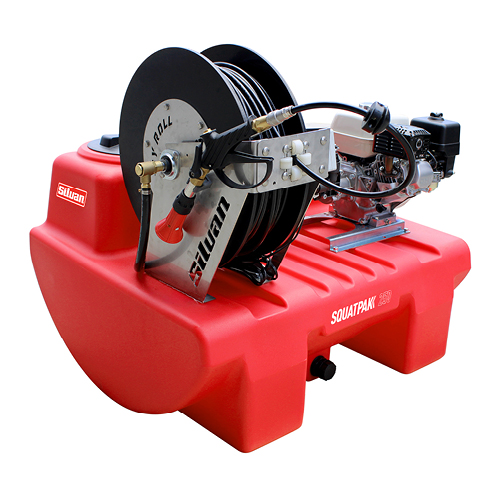

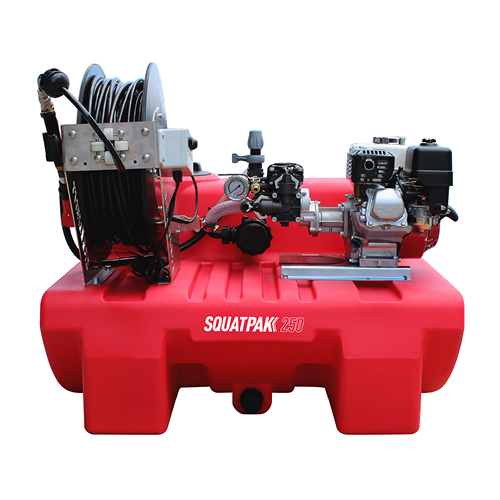

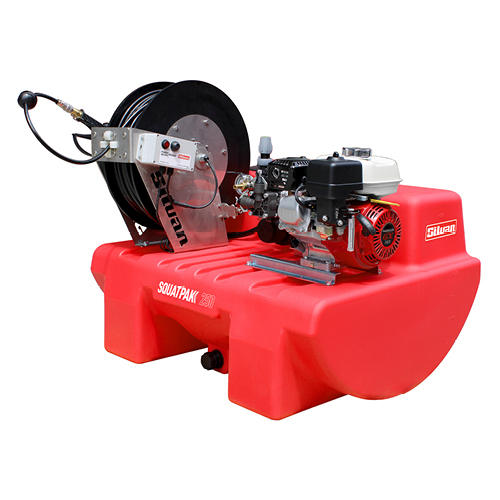

SQUATPAK 250L GX120 MC20/20 EASYROLL 12V HOSEREEL (TP250-34-3)

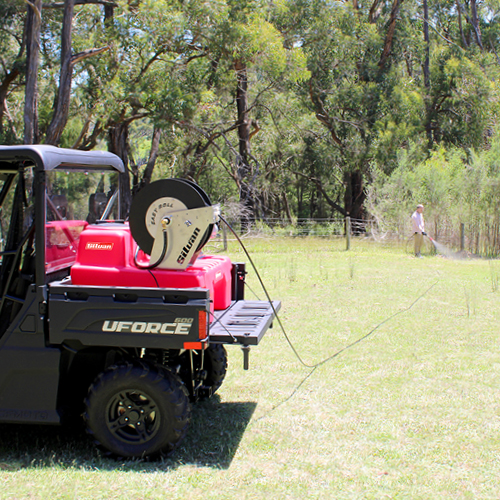

The SquatPak 250 GX120 MC20/20 Sprayer is a compact yet powerful spraying solution designed for side-by-sides, buggies, and utility vehicles. Built for maximum efficiency, it features a Polytuff step tank with sump and twin internal baffles to reduce liquid surge, ensuring smooth transport and optimal performance. Key Features include the following. Polytuff Step Tank with Sump & Twin Internal Baffles assists with draining and cleaning while enhancing stability during transport. Compact & Versatile Design which is ideal for UTVs, buggies, and utilities, delivering the pressure and flow needed to spray up to 15m or operate an 8-nozzle boom (04 nozzles @ 3 bar). A 50M EasyRoll 12V Hose Reel – Remote-controlled rewind function for effortless spraying and improved efficiency.
Product Code: TP250-34-3
specifications
Tank Size (L): | 250 |
|---|---|
Pump Size (L/MIN):: | 18.5 |
Max Pressure: | 290 |
Product Weight (KG): | 59 |
Height / Width / Length (MM): | 900 / 835 / 1010 |
Request More Information
Find Your Nearest Dealer
Key Features
250L Capacity UV Stabilised Polytuff tank with calibrated fill markings & front tank sump. Internal BAFFLES to reduce liquid surge when travelling. Bottom inserts for permanent fixing to a tray or attaching optional Forklift skids
Honda GX120 Driven with low level oil alert with direct drive 6:1 reduction gearbox
Comet MC20/20 18.5L/min open flow capacity & 20Bar/290psi maximum pressure. Silvan self-priming positive displacement oil-backed diaphragm with nitrile diaphragms and corrosion resistant, cast anodised aluminium body
Pressure regulator with pressure adjustment and automatic bypass, gauge and 2 outlets, 1 for the hose reel & 1 for an optional boom
3 stage Filtration, to protect the pump & minimize nozzle blockage. Basket strainer under the filling lid & 2 suction filters prior to the pump
Bolts and washers included. Can be fitted North/South or East/West
Atomiser spray gun, adjustable from a straight to a conical spray & Atomiser fine mist. Supplied with 1.5- & 2.0-mm ceramic nozzle
# Note: The MC20/20 pump has sufficient flow to increase the size of nozzles in the Towbar booms, standard fitment is Yellow 02, Towbar booms (excluding the RP1-36) can use Red 04 to increase the overall flow rate
