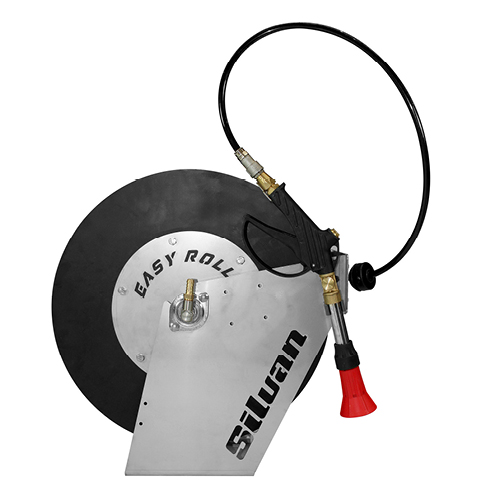

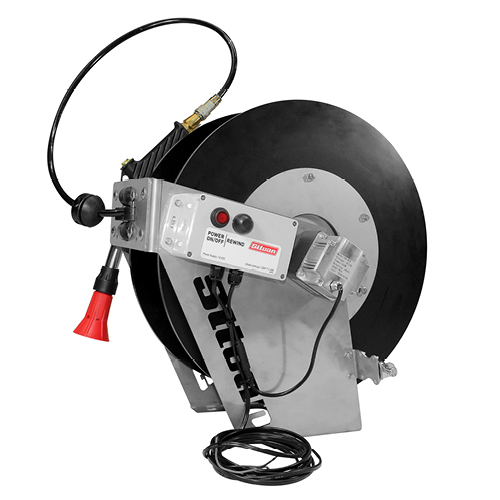

MK2 EASYROLL RETRACTABLE HOSEREEL 50M & ATOMISER SPRAYGUN (180NL2)
Designed and built in Australia, The Silvan MK2 EASYROLL retractable hose reel is a simple, effective solution for operators to spray noxious weeds along fence lines, roadside, undulating scrub, Blackberries, nurseries, or glasshouses and more. Ultimately minimizing fatigue. The MK2 EASYROLL hose reel has been designed to retro fit onto many sprayers with a flat surface that can hold the weight of the reel. (20Kg)
Product Code: 180NL2
specifications
Product Weight (KG): |
19 |
|---|---|
Height / Width / Length (MM): |
547 / 277 / 527 |
Request More Information
Find Your Nearest Dealer
Key Features
• Lightweight and Compact • Heavy duty thick gauge stainless steel construction. • Stainless steel finish is superior to paint for ultimate resistance corrosion and scratches. • Electric direct drive system assembly eliminates the use of chains, belts, and sprockets for more reliable and safer working conditions. This means that there are no belts or chains that need to be regularly checked and tensioned or replaced. • Direct drive system is effectively maintenance free. • A four-roller
• 12V DC Brushless High Torque electric motor • Max 25amp Draw
Single channel control 433mhz with adaptive frequency hopping prevents interference for reliable performance across undulating terrain.
On/Off power switch and manual override rewind switch.
• Push Pull connections on outlet and hub. • Hose: 50m of 12mm O.D Kink resistant nylon tubing with push fit fitting. • 250psi working pressure. • Spray Gun: Atomiser with hose swivel and gun holder. • Performance: Spray up to 15m distance
• Select a flat surface that can hold the weight of the hose reel. • Position the hose reel on the surface, mark the hole locations (175mm x 175mm) • Using a drill to create holes at the marked locations • Tighten the hosereel with M 10 Bolts, nuts & washers
• Ideal pump to use is the Silvan Comet LBA-34C • 5.5Hp Honda GX160. • Comet MC20/20 18.5L/min open flow capacity & 20Bar/290psi maximum pressure. • Silvan self-priming positive displacement oil-backed diaphragm Pump with nitrile diaphragms and corrosion resistant, cast anodised aluminium body.
ressure regulator with pressure adjustment and automatic bypass, gauge and 2 outlets, 1 for the MK2 EASYROLL hose reel & 1 for an optional Spray boom.
12 months
