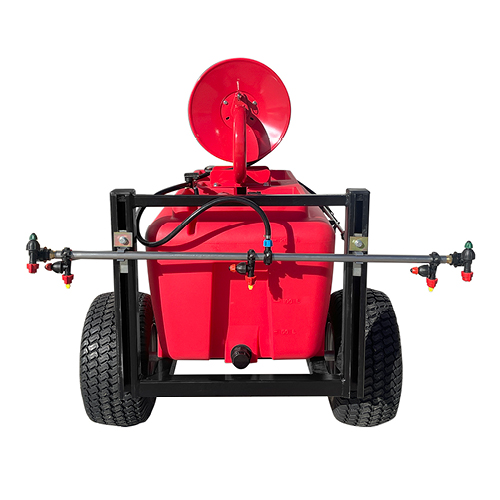

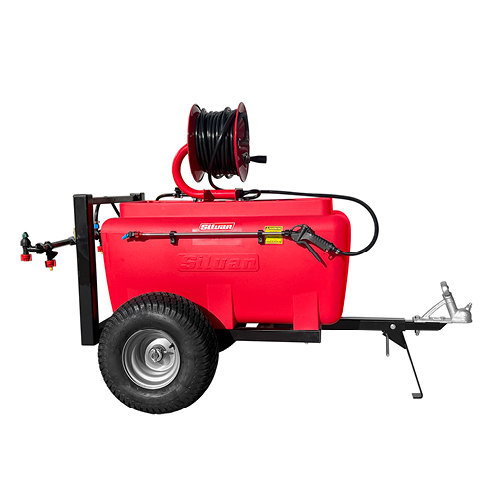

200L Lightfoot Trailed Sprayer (LT20-S7C-3)

The 200L Lightfoot with General Purpose Boom is a versatile agricultural spraying system. It features a 12V Smoothflo pulsation-free pump, providing a smooth and consistent spray. With an open flow of 7 L/min or a maximum pressure of 8 Bar/120psi, it ensures efficient spraying. The system includes an on/off switch and a 3m battery cable with alligator clips for easy operation. It comes with a Spotjet spray gun with an adjustable nozzle for precise application. The general-purpose spray boom offers a wide 4m to 7m spray swath, with the option to independently control all nozzles. Additionally, it has a convenient 30m manual hose reel for added flexibility.

Product Code: LT20-S7C-3

200L Lightfoot Trailed Sprayer (LT20-S7C-3)


Tank Size (L):


Pump Size (L/MIN)::


Max Pressure:


Product Weight (KG):


Height / Width / Length (MM):

1240 / 1000 / 1500

Tank :

Impact resistant UV Stabilized Polytuff Tank with moulded 8mm brass inserts in base of tank for securing to the trailer. Fitted with a rear 1 ¼” drain plug assembly and a 255mm breather lid basket strainer and external suction filter

Trailer :

Heavy duty and powder coated. Extendable Drawbar (0 - 400mm) and Parking stand. Features a 50mm ball Lockable Coupling. A solid steel 25mm axle with Steel rims along with 4 ply Pneumatic tyres (18 x 8.50-8)

Pump Specifications :

A 12V DC electric Aquatec pump (Model DDP-552A) with auto bypass and electric pressure sensing switch. Pulsation free. Open flow up to 7 litres/minute, maximum pressure 120psi. Also features an On/Off switch along with 3m of battery cable with alligator clips

Hose Reel :

Powder coated steel with lockable hub. A 30m x 10mm ID hose with the ability to mount in a North/South or East/West position

Spray Gun :

A spot jet spray gun with 600mm stainless steel lance and adjustable nozzle (410-51). Stored on the side of the tank for convenience

Spray Boom :

A 1/2” Stainless steel spray tube where all 5 nozzles can be independently turned ‘on and off’. A 3 x AIXR11002-VP Air Induction Nozzles fitted to non-drip nozzle bodies at 50 mm spacings. 2 x OC-04 Off Centre End Nozzles. And a Spray Width up to 7 m with Sliding adjustable boom height

Request More Information

    Find Your Nearest Dealer

    Key Features

    Ready for immediate use and can be attached to Side by Side, ATV or Utility using to 50mm coupling

    High Pressure Constant flow pump. No pulsation

    Spray boom has independent nozzle operation capability, ideal for fence lines or spray widths up to 7m

    Spotjet Spray gun with 500mm stainless steel lance and 30mtr x 10mm hose & Reel
