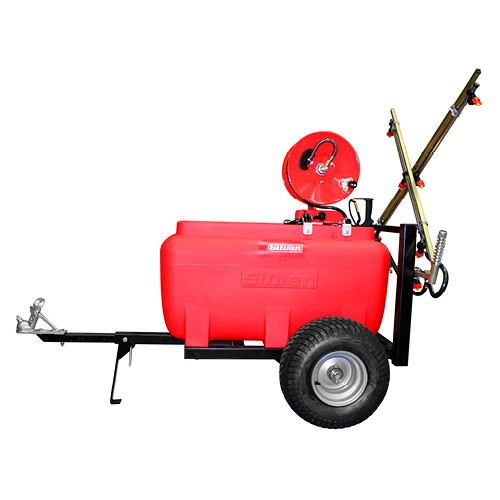

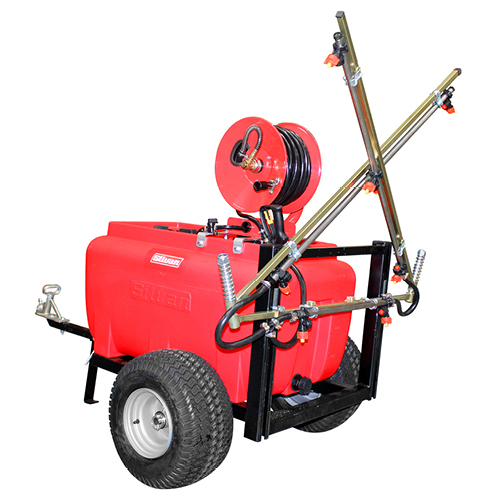

200L Lightfoot Trailed Sprayer with 4m Cross fold Boom (LT20-S10R-4)

FULLY ASSEMBLED AND FACTORY TESTED TRAILED 200LHI FLOW 12V SPRAYER is ready for immediate use and can be attached to Side by Side, ATV or Utility using to 50mm coupling. INCLUDES PROFESSIONAL VARIJET SPRAYGUN WITH A30M ECO HOSEREEL. Ideal for roadside spraying or spot spraying from a Side by side, carryall, trailer, spray distance up to 10m. ADJUSTABLE PRESSURE REGULATOR, GLYCERINE FILLED GAUGE. For pressure and flow control for the spray gun and any optional spray booms

Product Code: LT20-S10R-4

200L Lightfoot Trailed Sprayer with 4m Cross fold Boom (LT20-S10R-4)


Tank Size (L):


Pump Size (L/MIN)::


Max Pressure:


Product Weight (KG):


Height / Width / Length (MM):

925 / 580 / 1050

Tank :

Impact resistant UV Stabilized Polytuff Tank with moulded 8mm brass inserts in base of tank for securing to the trailer. Fitted with a rear 1 ¼” drain plug assembly and a 255mm breather lid basket strainer and external suction filter

Trailer :

Heavy duty and powder coated with extendable drawbar (0 - 400mm) and Parking stand. A 50mm ball Lockable Coupling and Solid steel 25mm axle with Steel rims. 4 ply Pneumatic tyres (18 x 8.50-8)

Pump Specifications :

A 12V DC electric Aquatec pump, Model DDP-555, auto bypass with pressure regulator. Open flow up to 14 litres/minute, maximum pressure 60psi. An On/Off switch, 3mtr of battery cable with alligator clips

Hose Reel :

Powder coated steel. Lockable hub. 30m x 10mm ID hose with the ability to mount in 4 positions - North/South or East/West position

Spray Gun :

Professional Varijet spray gun that delivers a spray pattern from a straight stream to a conical mist by rotating the barrel

Spray Boom :

A 4 m spray width with break back device protects boom if an obstruction is hit
